UIC 893-0 bevelled wear plates in X120Mn12 (1.3401) steel
Categories C and E
We manufacture bevelled wear plates in X120Mn12 (1.3401) manganese steel in compliance with the UIC 893-0 standard, in accordance with the customer's specifications. This type of part incorporates machining or bevelled finishes that facilitate its geometric adaptation and integration into the assembly, while maintaining the anti-wear properties required for railway and other technical applications.
Applications
- Friction and wear components for railway assemblies
- Use in bogies and other assemblies where the part's geometry requires bevelled edges
- Technical applications requiring wear resistance adapted to customer drawings
Material and standard
- X120Mn12 (1.3401) / Hadfield manganese steel
- Manufactured in compliance with UIC 893-0, categories C and E
- Possibility of reviewing special requirements upon request
Manufacturing and bevelling
- Manufactured in accordance with customer drawings

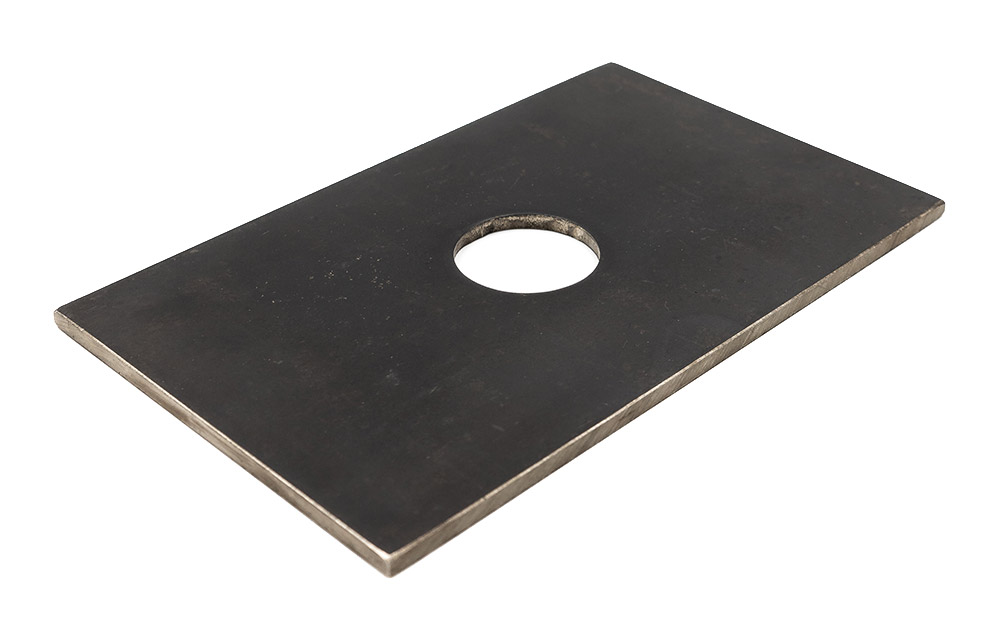

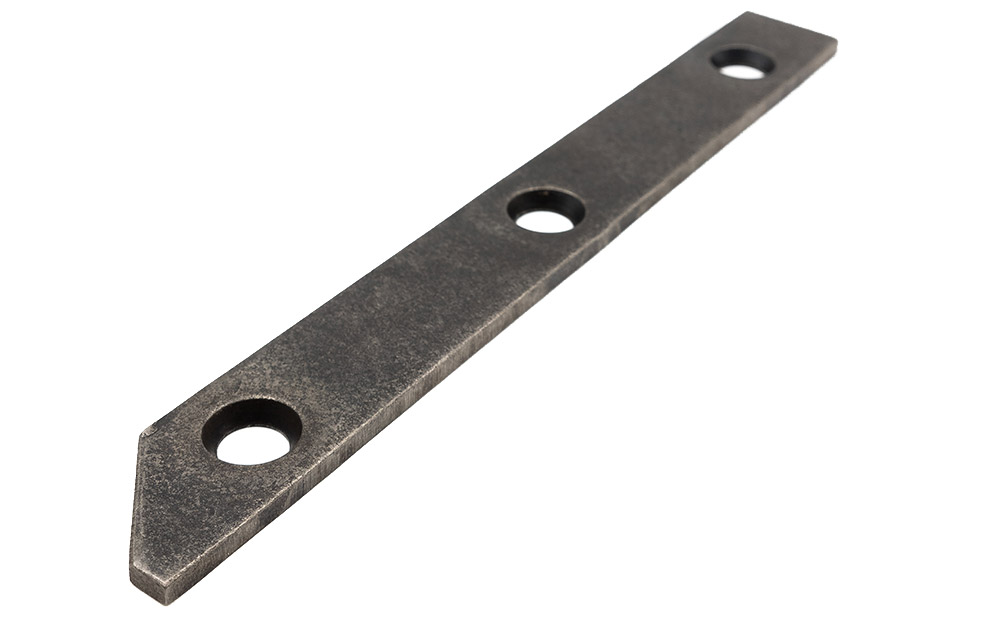

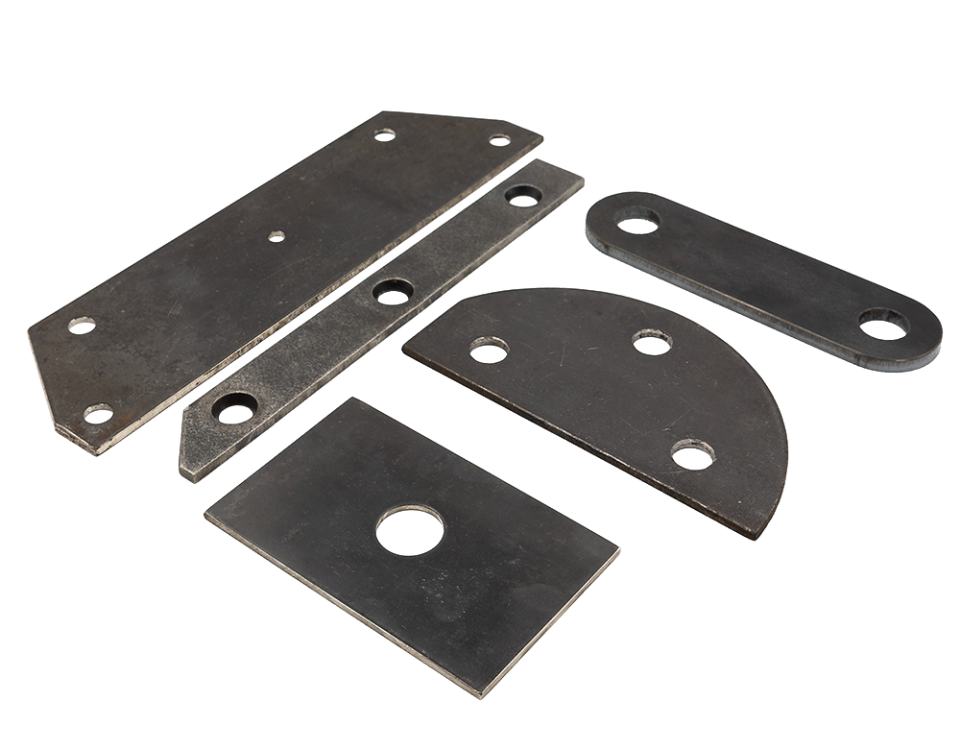

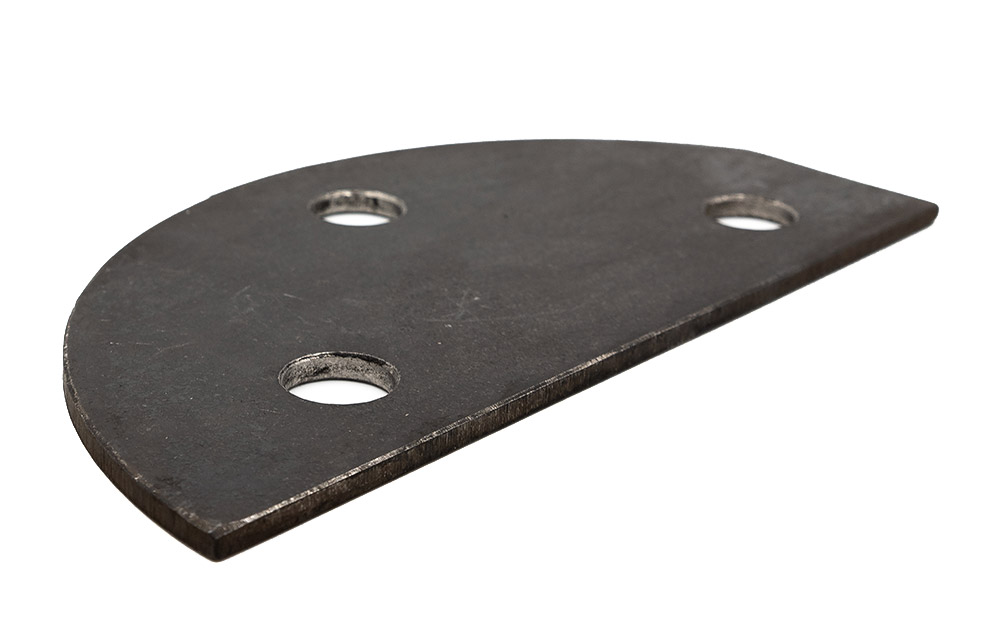

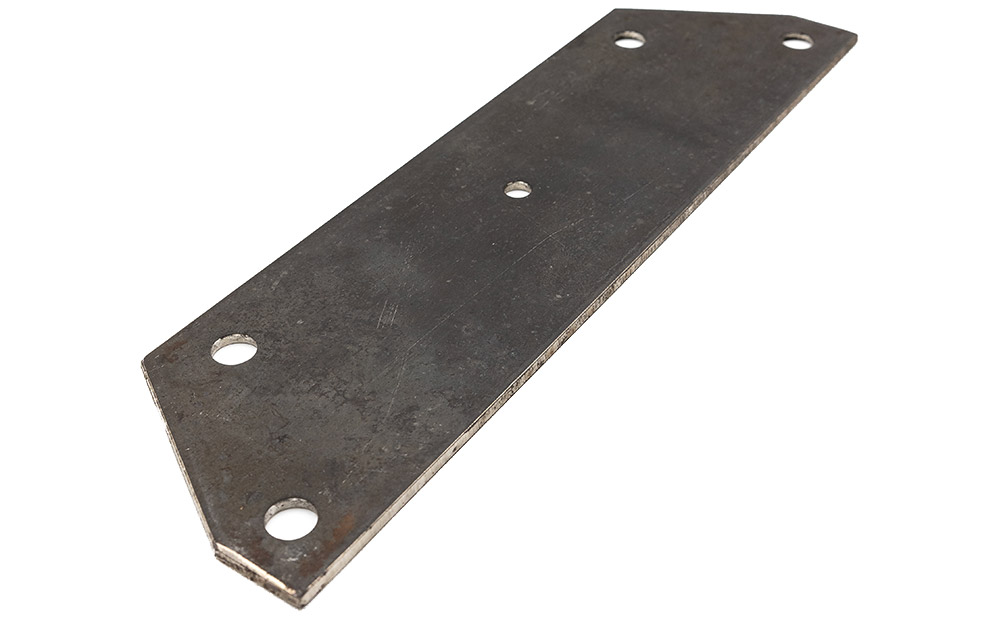

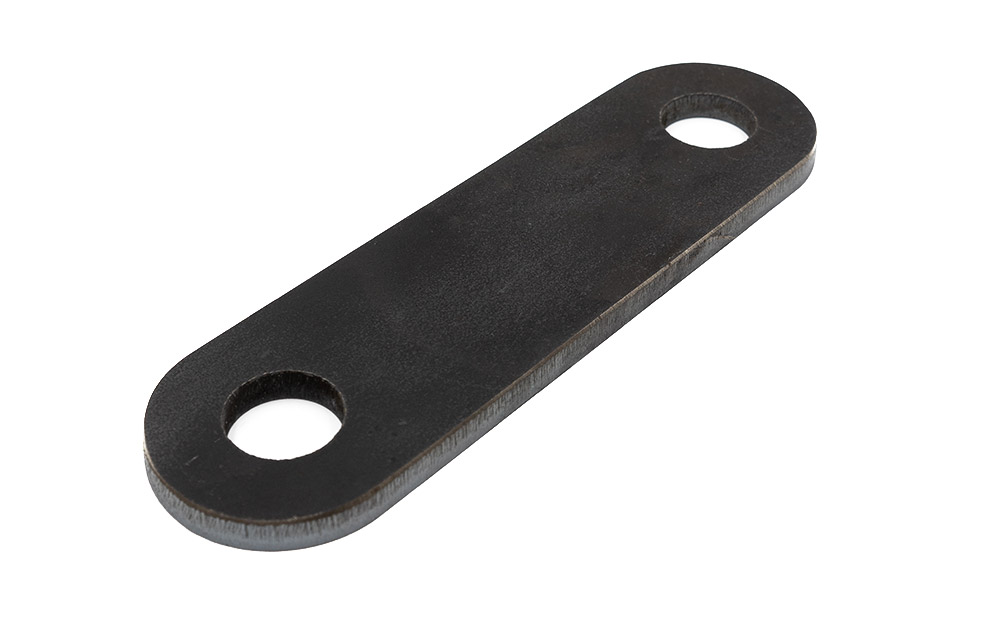

- Plates with bevels on one or multiple edges, according to the design
- Possibility of different shapes, dimensions, drilling and finishes defined in the drawing
- Production adapted to the specific assembly and operational needs of the unit
Quality and tolerances
- Manufacturing and control in compliance with UIC 893-0
- Review of tolerances, geometries and special requirements upon request
- ISO 9001 quality system
Lead times, stock and logistics
- Stock of raw materials and production capacity
- Confirmation of availability and lead times when providing a quote
- Shipments to Europe and exports available upon request
